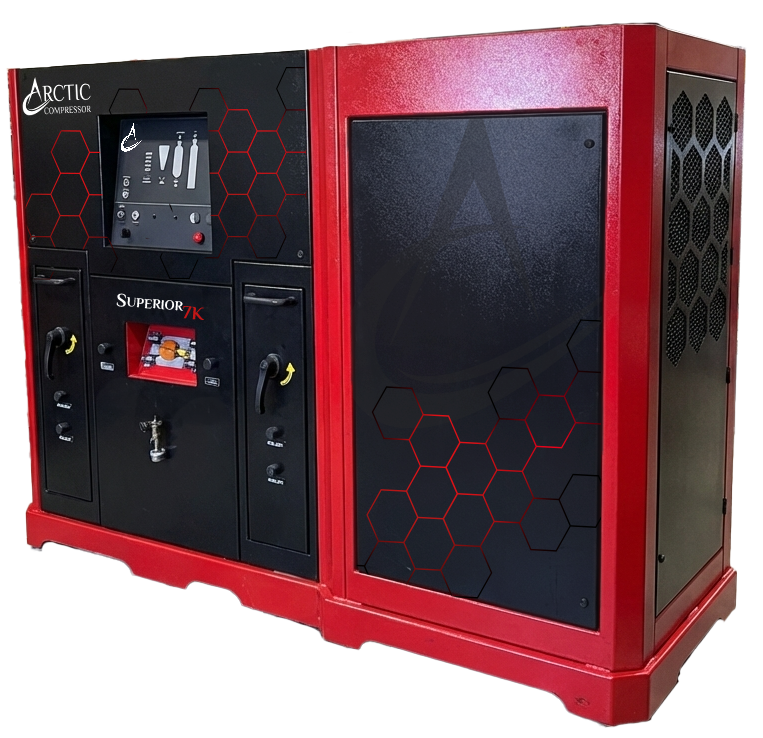

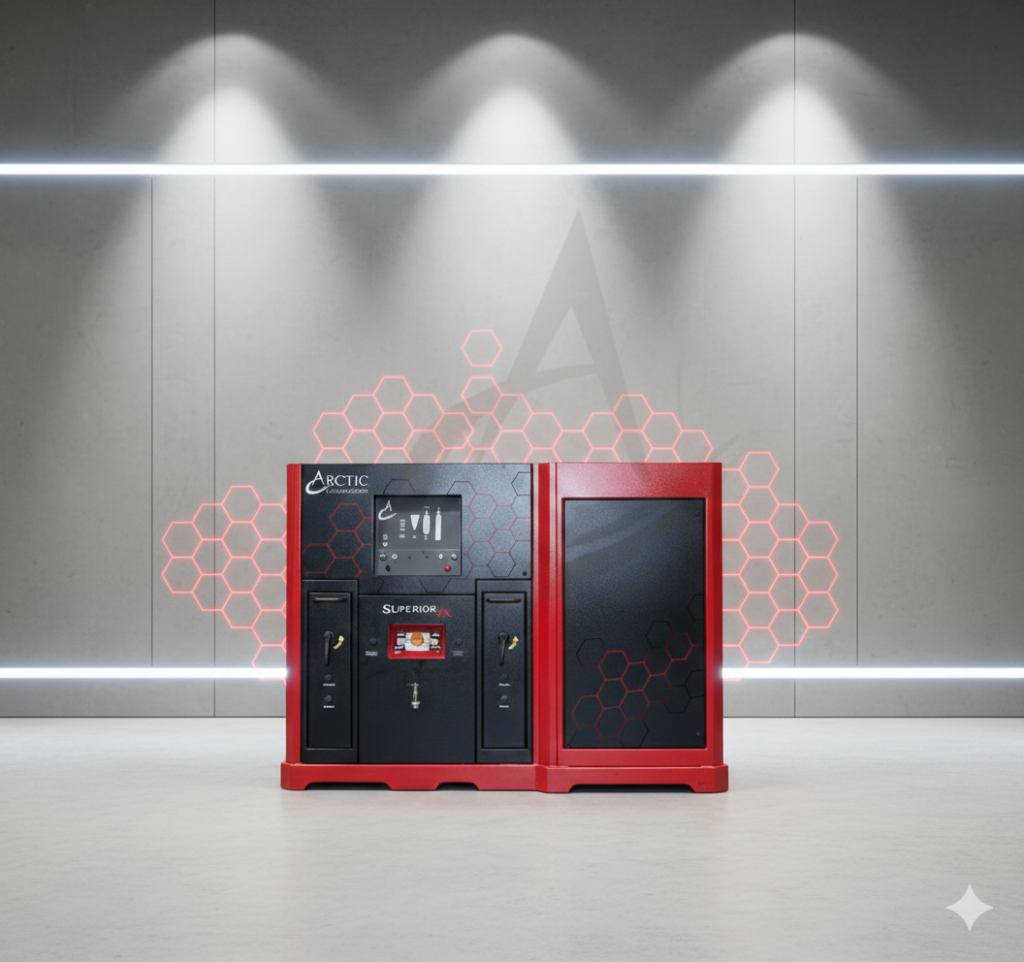

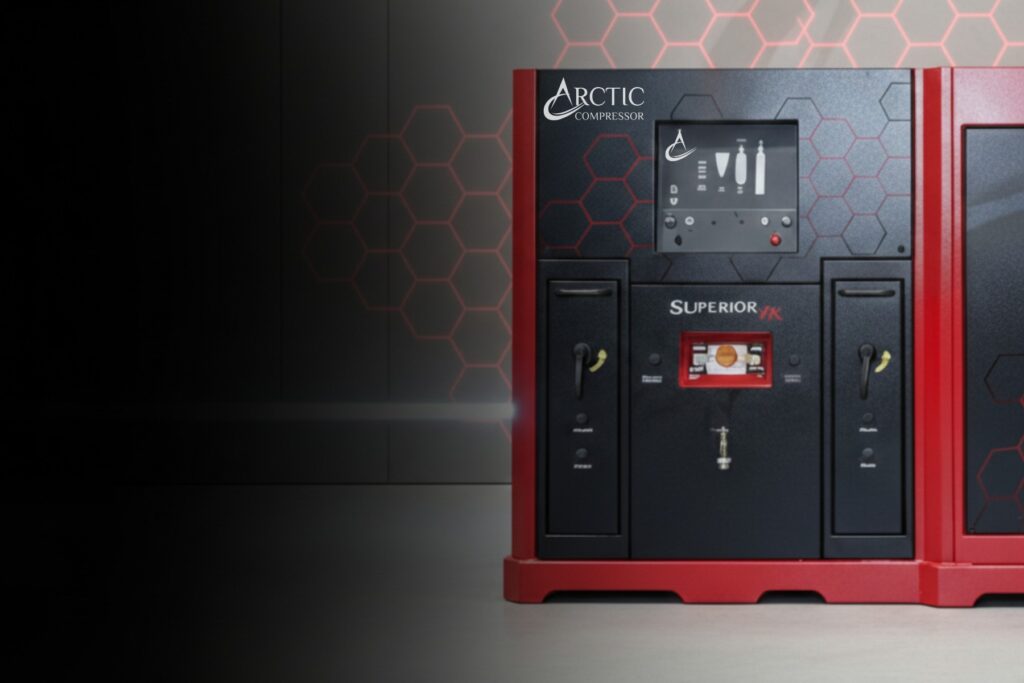

Arctic Superior 7K All-In-One Breathing Air System

The Arctic Superior 7K All-In-One Breathing Air System combines a high performance SCBA compressor, four standard fill positions, high pressure air storage and integrated controls in one complete system. With 24 CFM performance and the ability to fill up to 7000 PSI, the Superior 7K gives fire departments and emergency response teams the capacity they need to fill SCBA cylinders efficiently while simplifying equipment, operation and installation.

SHOP NOW
Superior 7K

Truly American-Made™

Certified to Meet NFPA Standards

CGA Grade E Breathing Air

What You Get

The "All-in-One" Workhorse

A complete, Truly American-Made breathing air system with four fill positions standard. The integrated design brings the SCBA compressor, cylinder filling, air storage and controls together in one system. Its five stage compression design supports cooler, longer lasting operation, helping reduce filling bottlenecks and get your team back in operation faster.

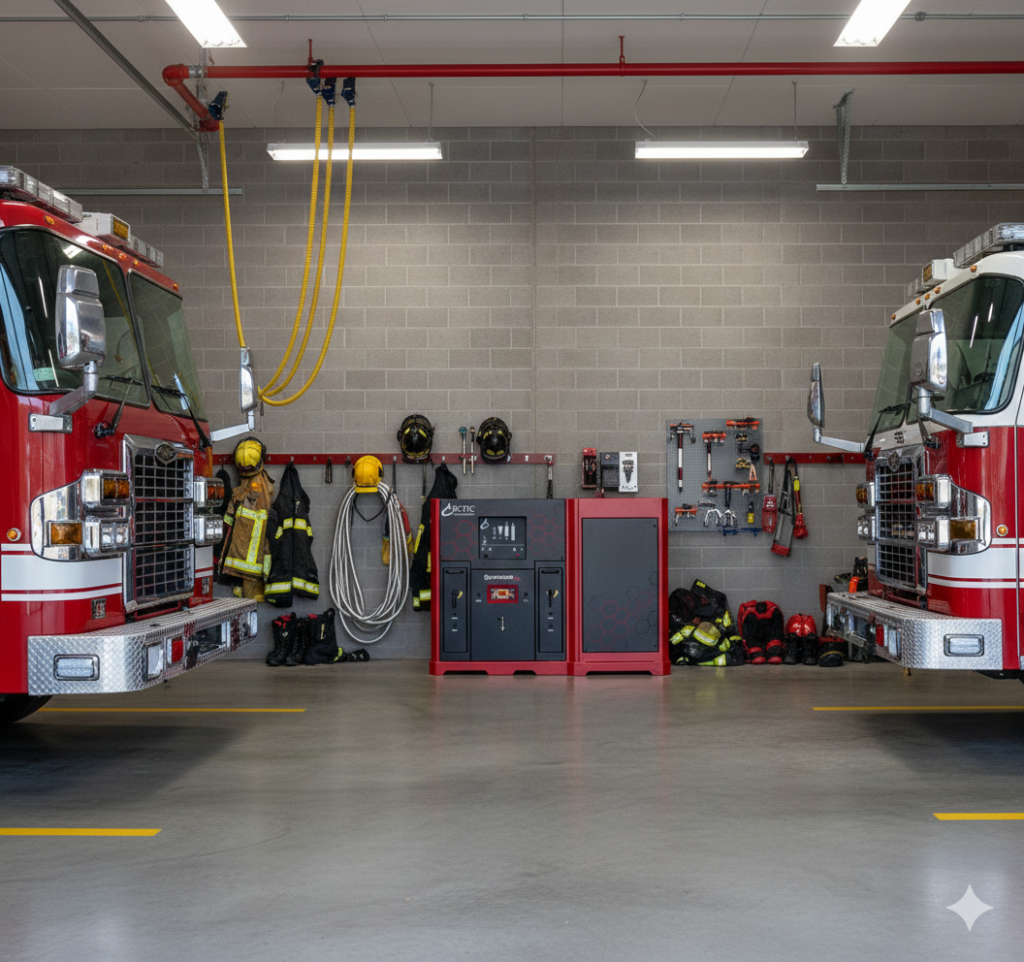

Built for Real Stations

Built for the stations of yesterday, today, and tomorrow. The modular design fits through a standard 36″ fire doorway and features a “wall-hugging” 34″ depth to maximize floor space.

Tactical Manual Controls

Forget “ghost-touches” or broken screens. Use glove-friendly, aircraft-grade knobs and valves designed to last 20+ years, ensuring you can fill cylinders easily.

Maximum Safety, Minimum Effort

Features a blast-proof cabinet, CO monitoring, and a 100’ electric-rewind hose reel. Maintenance is a breeze with lift-up panels and quick-access service doors.

Build Your Superior 7K

Not sure what would best suit your needs? Reach out to our team, and our experts will get you set up with a unit that best addresses your unique situation.

1.

Choose Your Power Type

Single-Phase or Three-Phase

2.

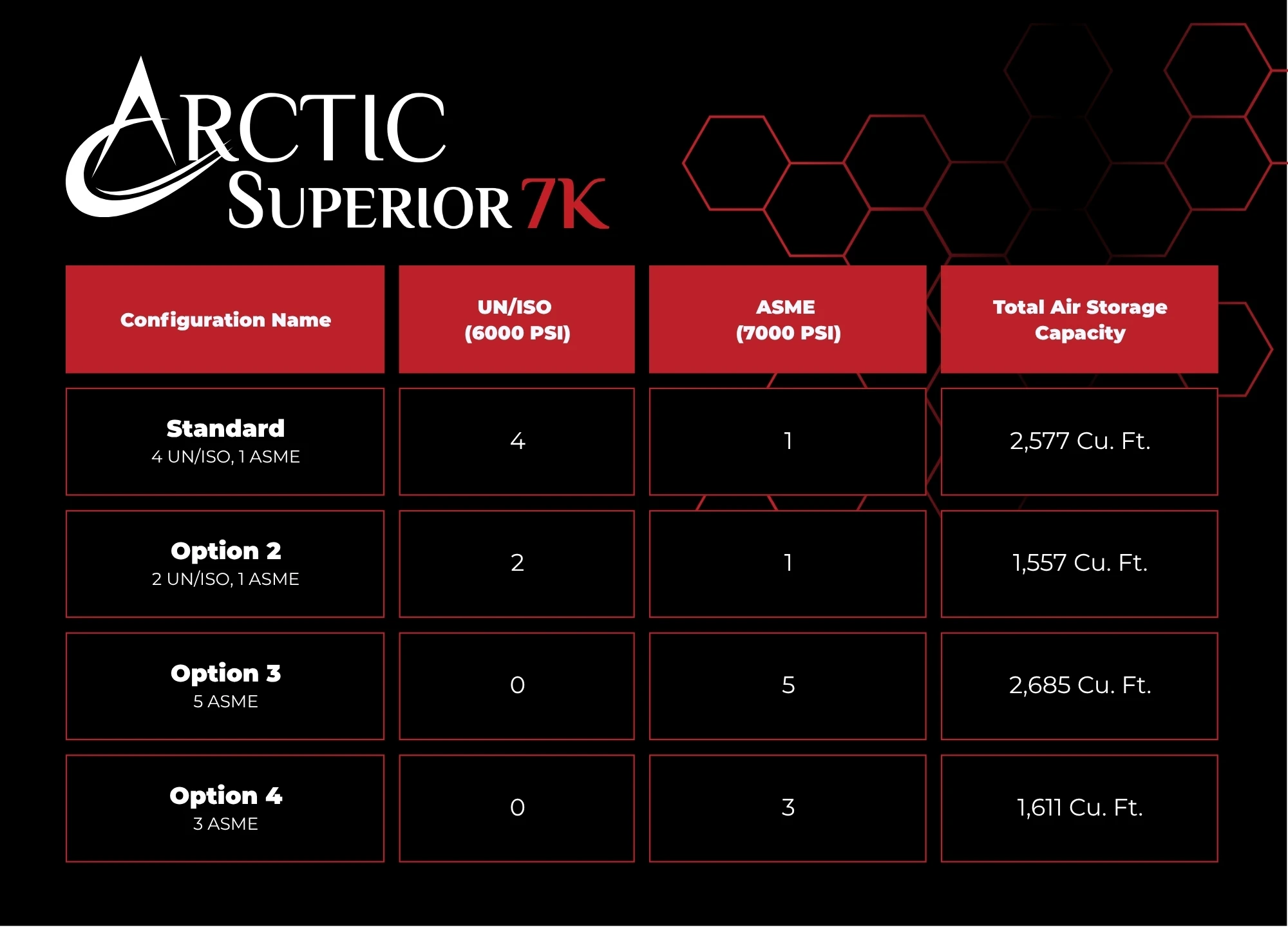

Choose Your Air Storage

Standard
1 ASME, 4 UN/ISO

More Storage Options

3.

Request a Quote

Get pricing from an authorized Arctic dealer near you.

Request a Quote

Cylinder Filling Should Be Easy.
So That’s What We Designed.

With the Arctic Superior 7K, departments can manage SCBA cylinder filling from one integrated system designed for straightforward, repeatable operation. The Arctic Control Panel puts the essential filling controls and system information in one convenient location.

The integrated Arctic Control Panel offers:

  • Cylinder pressure selection
  • Fill rate control
  • Storage pressure indicator
  • Cylinder pressure indicator

Smart Monitoring Without the “Screen Fatigue”

Get the data you need without the digital clutter. Our interface conveys real-time fill pressure indicator, cylinder status, and system warnings.

  • No Ghost-Touches: Mechanical buttons and dials make gloves-on operation seamless. No struggling with touch sensitivity in high-pressure environments.
  • Mission-Critical Reliability: If a touchscreen fails, the whole station is OOS (Out of Service). With our simple architecture, you maintain control of your airflow.
  • Reduced Life-Cycle Costs: Avoid the $5,000+ replacement bills and weeks of downtime common with proprietary “smart” HMIs.

Simple to Move, Easy to Fit

Most “all-in-one” systems are massive, rigid blocks that require double doors, forklifts, or even structural demolition to install. The Arctic Superior 7K is engineered for the stations of yesterday, today, and tomorrow. Even with four standard fill positions and high pressure air storage, our slim modular architecture allows the system to be moved easily.

  • The Standard Fire Door Guarantee: Our modular architecture allows the system to be moved through a standard 36” fire doorway in two modular pieces. Refer to dimensions for exact measurements.
  • Installation in More Places: Modular design and compact footprint means the ability to fit in more existing facilities without additional modifications to the facility, saving money on construction costs.
  • Wall-Hugging Footprint: At only 34” deep, our unit leaves more floor space for your team to move safely, unlike the bulky 38”+ depth of competing models.

Technical Specs

  • CFM: 24
  • PSI: Up to 7000 PSI
  • System Compression Stages: 5
  • Motor: 20 HP
  • Air Storage: 1 ASME cylinder, 4 UN/ISO cylinders
    • Configurable for up to 5 ASME cylinders

Safety & Monitoring

  • Emergency Stop Button
  • Arctic CO Monitor
  • Arctic Control Panel
  • Diagnostic gauges and monitoring easily accessible inside unit
  • Compressor low-pressure and high-temperature safety shutdown

Fill Stations

  • Two (2) Double Position Compact Fill Stations (4 cylinder positions total)
  • Automatic operation system – no cascading required
  • Hose Reel: 100’ High-Pressure Hose Reel (electric rewind)

Maintenance

  • Easy Access Lift-Up Panels
  • Automatic Condensate & Oil Separation

Dimensions

  • Weight: 5200 – 6000 lbs (max weight) – depends on unit configurations
  • Size:
    • Doors Closed: 102” W X 34” D X 76” H (Will fit through standard door)
    • Doors & Fill Station Open: 148” W x 59” D (lid open) x 81” H (lid open)

Breathing Air Quality

Exceeds CGA Grade E

Safety & Monitoring

  • Blast proof design: Arctic uses high-grade steel and aircraft-grade aluminum components to be the most durable, longest-lasting fill station on the market.
  • Certified to meet and exceed NFPA 1901 (2016) safety standards. Certified to operate at 5700 PSI, exceeding standards of 5500 PSI.
  • Lock, then fill. All fill stations must have the door fully locked before the system will allow the operator to begin filling the cylinder(s).
    Arctic M4200 CO Monitor

Simplified Controls

The user- friendly interface locates all the controls you’ll need in one convenient location – system power, quiet mode, and fill start/stop buttons.

Simply select your fill pressure and variable fill rate. During filling, the interface displays how full the cylinder is as well as any system warnings.

Low-Noise

Finally, quiet operation. A fully enclosed, blast-proof cabinet design ensures operator safety, easy communication during operation, and best of all – peace & quite.

Advanced Compression Technology

Featuring 5-stages of compression, the Superior 7k keeps each individual stage ideally within the pressure range that is most efficient and effective.  This results in cooler temperatures and more high-pressure air at the top of the range where you need it most to fill the modern highest performance, high pressure cylinders on the market today.

Fill Any Cylinders

Compatible with all common SCBA and SCUBA cylinders

Availability

8-12 weeks

Models

  • C-S7K-20C-C-FS4-55-AS1U4-E3
  • C-S7K-20C-C-FS4-55-AS1U4-E1
  • C-S7K-20C-C-FS4-55-AS1U2-E3
  • C-S7K-20C-C-FS4-55-AS1U2-E1
  • C-S7K-20C-C-FS4-55-AS5-E3
  • C-S7K-20C-C-FS4-55-AS5-E1
  • C-S7K-20C-C-FS4-55-AS3-E3
  • C-S7K-20C-C-FS4-55-AS3-E1

Preset Fill Pressures

6000 PSI, 5500 PSI, 4500 PSI, 3000 PSI, and 2216 PSI

Control Panel

Automatic Operation

Build

New

Fill Positions

Four

Cylinder Compatibility

Fits all common SCBA and SCUBA cylinders (Ie: 5500 PSI, 4500 PSI, 2216 PSI, etc.) up to 31” in length

Weight

5200 – 6000 lb (max) – weight depends on unit configurations

Dimensions

Doors Closed
102” W X 34” D X 76” H (Will fit through standard door)

Doors & Fill Station Open
148” W x 59” D (lid open) x 81” H (lid open)

Frequently Asked Questions

The Arctic Superior 7K is a complete breathing air system designed for fire departments and emergency response organizations that need a reliable solution for producing, storing and filling high pressure breathing air. The system integrates a 24 CFM SCBA compressor, air storage, four standard cylinder fill positions, controls and safety monitoring into one modular package.

The Superior 7K includes two double position Compact Fill Stations, providing four cylinder fill positions as standard. Its automatic operation system eliminates the need for manual cascading and helps departments fill multiple SCBA cylinders efficiently.

The Superior 7K can fill up to 7000 PSI and comes standard with one ASME storage cylinder and four UN/ISO storage cylinders. Additional storage configurations are available, including options for up to five ASME cylinders.

Yes. The Superior 7K uses a modular design that allows it to be moved through a standard 36 inch fire station doorway in two modular pieces. With the doors closed, the system measures 102 inches wide, 34 inches deep and 76 inches high.
The Superior 7K produces breathing air that exceeds CGA Grade E requirements and incorporates multiple safety and monitoring features, including an Arctic CO Monitor, emergency stop, compressor safety shutdowns, diagnostic monitoring and blast resistant fill station construction. The fill station is certified to meet and exceed applicable NFPA 1901 safety standards identified for the system.
Yes. The Superior 7K is manufactured by Arctic Compressor in Superior, Wisconsin. Arctic’s Truly American-Made breathing air systems are designed and built for organizations that depend on durable, serviceable equipment for mission critical breathing air applications.
